Lesson 084 · AWS Learning Path

AWS 084: Interface endpoints and AWS PrivateLink

Anil Jalela · Published Sep 17, 2025 · 9 min read

The real problem

A team recognizes the name Interface endpoints and AWS PrivateLink but has not connected the feature to a real requirement, identity boundary, network or data path, failure mode, price dimension, and cleanup owner. A plausible configuration could still fail the workload.

Final outcome

The learner will produce a requirement-led artifact for Interface endpoints and AWS PrivateLink, inspect the matching AWS control plane in the Management Console, run a matching CloudShell or AWS CLI query, interpret the output, diagnose one failure, defend one architecture choice, and prove cleanup or approved retained state.

The practical outcome is not a command transcript. It must show what was expected, what happened, what the result proves, what it does not prove, and which evidence would change the decision.

Learning objectives

By the end of this lesson, the learner can:

• explain an interface endpoint creates private enis;
• explain private dns preserves normal service names;
• explain security groups protect endpoint enis;
• explain privatelink is service-oriented, not full vpc routing;
• explain providers normally front services with nlb or gwlb;
• connect control-plane state to the real data, network, identity, or application behavior;
• identify cost and cleanup ownership before any optional mutation;
• troubleshoot from evidence without opening broad access or adding broad permissions.

Relationship model

Requirement
   |
   v
Identity and policy -> AWS configuration -> network or data path -> workload behavior
        |                    |                      |                    |
        +--------------------+----------------------+--------------------+
                                      |
                                      v
                         monitoring, cost, recovery, cleanup

Use this model to separate an AWS object that exists from a result that actually works. Every arrow is a verification boundary.

Prerequisites, permissions, Region, and safety

• Learning baseline: This sequence assumes practical Linux knowledge but no prior cloud-computing or AWS knowledge. Cloud, networking, security, data, automation, and architecture concepts must come from completed earlier lessons. If a prerequisite checkpoint is incomplete, return to its linked lesson before continuing.
• Confirm a non-root caller with aws sts get-caller-identity and keep the account number private.
• Use ap-south-1 unless this lesson explicitly names a second Region.
• Confirm the intended profile and Region with aws configure list before interpreting an empty result.
• Use read-only List, Get, and Describe permissions for the named services. Design exercises run locally and require no resource-creation permission.
• This is a no-create lesson. Console and CLI work is read-only, and every design artifact is created locally.
• Never publish account IDs, public addresses, ARNs containing private account data, session IDs, presigned URLs, object data, credentials, or KMS material.
• Do not use root, world-open SSH or RDP, disabled TLS verification, unowned resources, or irreversible retention controls in a training exercise.

Core model

How it works

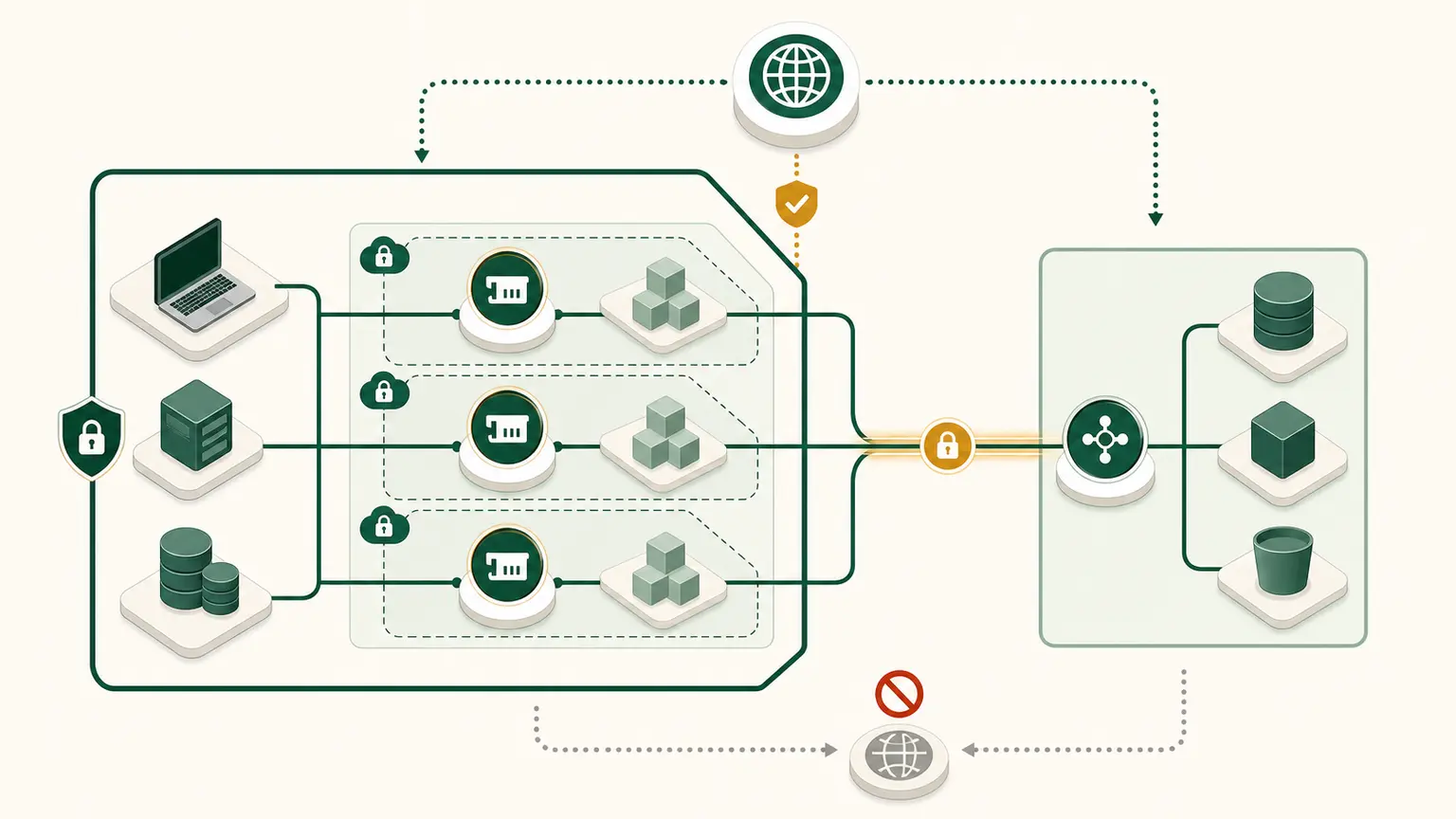

Use PrivateLink when consumers need private access to one service across accounts or VPCs without transitive routing or CIDR exposure. It is not a replacement for peering or Transit Gateway when broad bidirectional network connectivity is required.

Read the result in layers:

1. Scope: account, Region, VPC, bucket, AZ, endpoint, principal, object version, or resource ARN.
2. Control plane: the requested configuration exists and reached an expected state.
3. Behavior: the request, connection, health check, replication, restore, or application result meets the requirement.
4. Operations: monitoring, failure owner, cost, retention, rollback, and cleanup are known.

Control-plane success is necessary but not sufficient. A resource can be available while policy, routing, DNS, health, data, or application behavior remains wrong.

Architecture decision table

Professional questions normally contain several valid services. State the requirement that selects one option, why the nearest alternative fails it, and what changed requirement would reverse the choice.

AWS Management Console guided practice

Before opening a service page, write the expected account, Region, starting state, and evidence. Do not choose Create, Save, Purchase, Lock, or Delete unless the lesson explicitly authorizes the live track.

1. Open VPC Endpoints and select an interface endpoint.
2. Inspect service name, private-DNS setting, selected subnet in each AZ, endpoint ENIs, and security groups.
3. Confirm endpoint security-group ingress from the clients and inspect the endpoint policy and service authorization separately.

For each step, capture the field name and value in text. A screenshot may support the record but does not replace the explanation. Console labels can evolve, so use the service search and current documentation if a navigation label differs.

CloudShell and AWS CLI practice

CloudShell is the default browser-based command environment taught in AWS 028. AWS 029 and AWS 030 cover local CLI installation and authentication. This lesson therefore does not assume that an unconfigured local shell is ready.

Start every session with:

export AWS_DEFAULT_REGION="ap-south-1"
aws sts get-caller-identity --query Arn --output text
aws configure list

Redact the account portion of the ARN before sharing. Then perform the topic query:

Inspect endpoint ENIs, subnets, groups, private DNS, and policy.

aws ec2 describe-vpc-endpoints --vpc-endpoint-ids vpce-0123456789abcdef0 --query 'VpcEndpoints[0].{Type:VpcEndpointType,Service:ServiceName,State:State,DNS:PrivateDnsEnabled,Subnets:SubnetIds,ENIs:NetworkInterfaceIds,Groups:Groups}'

Expected interpretation:

An available endpoint still fails if private DNS attributes, endpoint security-group ingress, client egress, NACLs, endpoint policy, or service authorization is wrong.

Replace every replace-with-... sample value before running its command, and use only an explicitly owned resource. Explain each option first. These queries are read-only; a successful response does not authorize a later create or delete operation.

Practical work

Create p05-interface-endpoint-plan.md for Systems Manager administration of a production private fleet. Map required regional service names, private DNS, one endpoint subnet per active AZ, endpoint ENIs, endpoint security-group TCP 443 from the app security group, endpoint policy, Route 53 behavior, hourly and data cost, and the difference from the no-management-path AWS 106 lab. Do not create endpoints.

The evidence package must contain:

• the problem and final requirement in the learner's own words;
• caller type and Region with private identifiers redacted;
• exact planned values, ownership, and cost class;
• one Console observation and matching CLI or API evidence;
• one behavior result or supplied data-plane record;
• one denied, failed, or counterexample result and evidence-led diagnosis;
• one architecture choice plus the rejected alternative;
• cleanup proof or explicit retained-state owner, expiry, and next lesson.

Verification standard

Use expected state before observed state. Record timestamps in UTC and preserve the original failure before changing anything. A passing submission answers all four questions:

1. What exact requirement was tested?
2. Which evidence proves the AWS configuration?
3. Which evidence proves the workload behavior?
4. What remains unproven or requires later monitoring?

If AWS returns no rows, verify account, Region, permission, filters, pagination, resource type, and deletion state before concluding that nothing exists.

Common failures and troubleshooting

Do not troubleshoot by attaching administrator access, opening administration ports to the internet, disabling encryption, retrying uncontrolled creation, deleting unknown resources, or weakening retention.

Cost, cleanup, and retained state

No AWS resource is created. Close CloudShell and remove or redact downloaded evidence.

Cleanup evidence requires terminal state and an after-inventory. Search related ENIs, public IPv4 addresses, EBS volumes and snapshots, load balancers, target groups, Auto Scaling instances, endpoints, logs, S3 versions and delete markers, backup recovery points, and global IAM roles when they apply. Billing data can lag, so schedule a later review.

Architecture and certification decisions

• Certification coverage: SAA-C03; SOA-C03; SAP-C02; DOP-C02.
• Exam mapping: SAA D1-D3.
• Explain service scope, failure boundary, consistency, recovery, security, operations, and price rather than matching a keyword.
• Treat availability and durability, encryption and authorization, routing and filtering, health and lifecycle, backup and replication, and discount and capacity as separate concepts.
• Do not reproduce protected certification questions.

Knowledge check

1. Does an interface endpoint require an internet gateway?

Expected direction: No. Clients use private endpoint ENI addresses.

1. Can an interface endpoint select two subnets in the same AZ?

Expected direction: No. Select one subnet per Availability Zone.

1. Does PrivateLink create general bidirectional VPC routing?

Expected direction: No. It exposes a selected service or supported resource path.

1. Why can the standard AWS service hostname use the endpoint?

Expected direction: Private DNS overrides supported regional service resolution inside the VPC with endpoint ENI addresses.

Completion gate and assessment

Pass at 80 out of 100 with no critical safety failure. A missing practical artifact, unexplained output, unsafe access, destructive action outside the owned scope, unplanned billed resource, or false cleanup claim requires remediation and a changed retest.

Official sources

• What is AWS PrivateLink?
• Access AWS services through PrivateLink
