Lesson 027 · AWS Learning Path

AWS 027: AWS Management Console orientation and Region awareness

Anil Jalela · Published Jul 22, 2025 · 5 min read

The problem

A learner creates a resource in one Region, switches Regions, and concludes that it disappeared. Another learner confuses the Console interface with the underlying AWS API and assumes a successful page load proves permission to perform an action.

Final outcome

You will orient yourself in the AWS Management Console, distinguish global, regional, and zonal scope, select the fixed course Region, inspect read-only evidence in two Regions, and create a navigation record without creating resources.

The Console is an API client

browser Console
      |
      v
authenticated AWS API requests
      |
      v
service control plane in an account and scope

The Console does not bypass IAM. It calls AWS service APIs using your signed-in session. Pages can change layout while the underlying service concepts remain.

Main interface areas

• account and identity menu;
• Region selector;
• service search;
• recently visited services;
• CloudShell launcher;
• notifications;
• AWS Health or support access where available;
• service-specific navigation;
• resource search and tagging tools.

Do not memorize pixel positions. Learn the service name, resource type, account, Region, and action.

Scope model

"Global service" does not mean every API endpoint, dependency, or data behavior is globally identical. Read the service documentation.

Select the course Region

The course examples use ap-south-1 unless an instructor publishes another fixed Region. Before adopting it, verify:

• the account can use it;
• required course services and features exist there;
• latency is acceptable;
• regulatory and data-location needs allow it;
• expected prices are understood.

If your assigned Region differs, record it once in P02 and substitute it consistently. Do not alternate Regions because an example screenshot shows another value.

Guided Console exercise

Sign in with the daily non-root identity.

1. In the top navigation, find the account/identity display. Confirm it is not root.
2. Find the Region selector and choose Asia Pacific (Mumbai) ap-south-1, or the instructor-assigned Region.
3. Search for EC2 and open its dashboard.
4. Record the Region displayed by the service page.
5. Open Instances and observe the current list without launching anything.
6. Open Volumes, Elastic IP addresses, and Snapshots read-only. These views will matter during cleanup.
7. Search for VPC. Open Your VPCs, Subnets, and Route tables without creating anything.
8. Switch to another enabled Region, such as us-east-1.
9. Reopen the same EC2 and VPC inventory pages and compare.
10. Return to the fixed course Region before leaving.

An empty list proves only that the current identity can see no matching resources in the selected scope. It does not prove another Region, account, or inaccessible resource is empty.

Global-service comparison

Open IAM and inspect the dashboard. Change the Region selector. IAM identity inventory is account-scoped rather than a separate set of IAM users per Region.

Then return to EC2. The resource view follows the selected Region. Record this contrast.

Some services use a primary or home Region for certain operations even when their purpose is broader. Always inspect service scope rather than applying a global/regional label mechanically.

Region availability

Some AWS Regions are enabled by default and others require opt-in. Enabling a Region expands where credentials and resources can operate. It is an account-governance decision, not a casual way to explore the selector.

Do not enable or disable a Region in this lesson. A Region disablement can affect access to resources and should occur only after inventory, dependency, backup, and recovery review.

Evidence

Create:

mkdir -p "$HOME/nitwings-aws/evidence/aws-027"

Create console-region-map.md:

Add:

• daily identity type;
• fixed course Region code and display name;
• why that Region was selected;
• where the Region appears in the interface;
• one danger of working in the wrong Region;
• a final confirmation that the selector was returned to the course Region.

Redact account identifiers and resource details.

Why resources appear missing

Use this order:

1. Confirm the signed-in account.
2. Confirm the principal or role.
3. Confirm the selected Region.
4. Confirm service and resource type.
5. Clear search filters and pagination assumptions.
6. Confirm IAM permission to list or describe.
7. Check whether the resource is global, regional, or zonal.
8. Check creation or deletion events if it should exist.

Refreshing the browser repeatedly does not resolve a wrong account or Region.

Console safety rules

• Read the final review page before any creation.
• Record account, Region, resource name, and cost before saving.
• Do not choose Create merely to see the next page when the service might provision immediately.
• Do not paste secrets into tags, names, user data, descriptions, or screenshots.
• Treat destructive red buttons as real API actions.
• Keep one tab on billing and one on resource inventory during labs.
• Sign out on shared systems.

Common failures

Architecture decisions

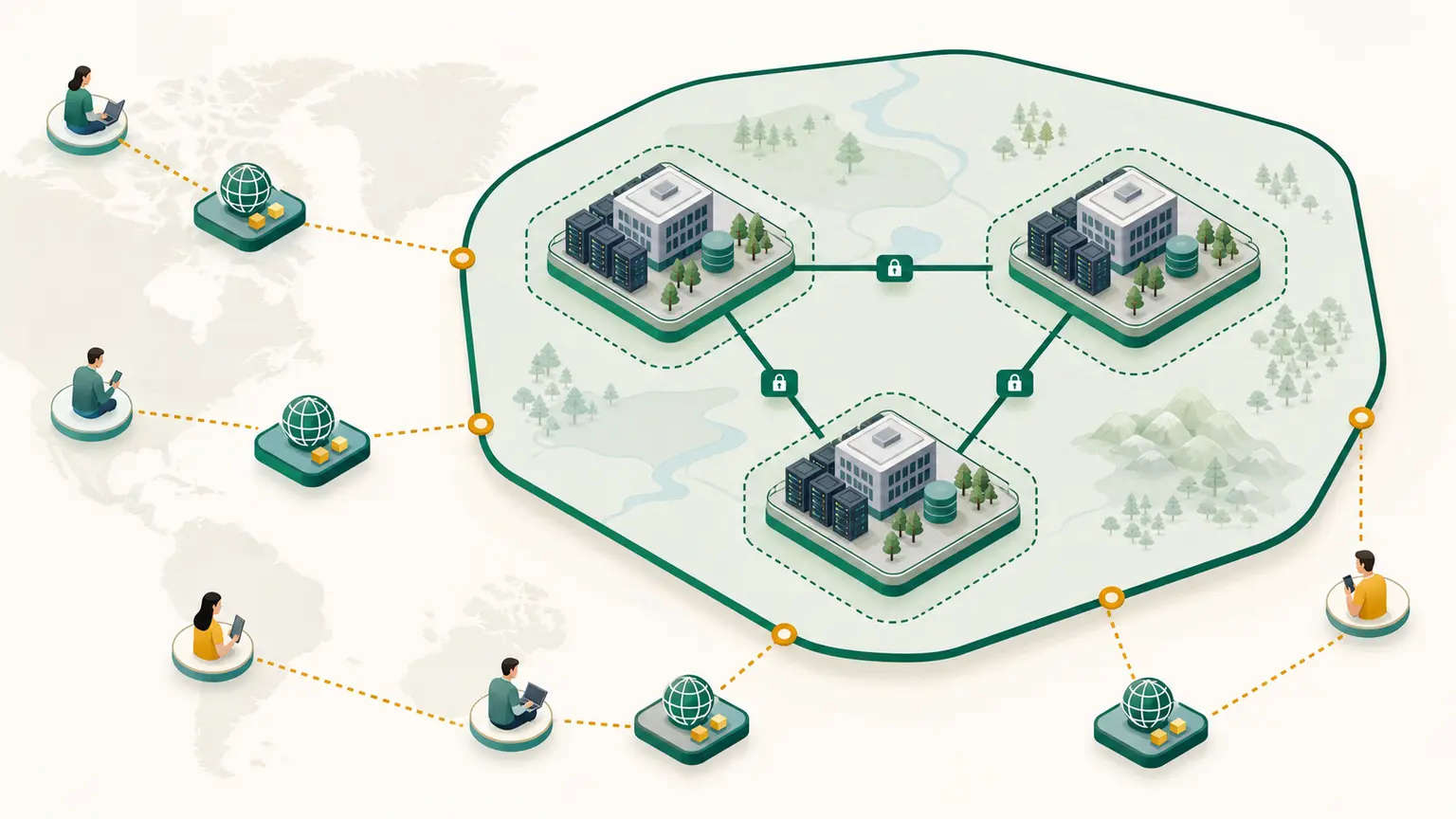

Region selection considers latency, service and feature availability, compliance, data residency, disaster-recovery design, inter-Region transfer, cost, and team operation. An Availability Zone selection handles a different failure boundary inside one Region. Edge locations serve yet another purpose.

Certification scenarios usually provide a requirement that dominates the choice. "Choose the nearest Region" is incomplete when legal location or required service availability conflicts.

Completion gate

Pass when the learner can find identity, service search, Region selector, EC2, VPC, IAM, and Billing; correctly classifies their scope; compares two Regions read-only; records the fixed Region; and returns the Console to it.

No AWS resources were created.

Official sources

• Getting started with the AWS Management Console
• AWS Regions
• AWS Regions and Availability Zones
