Apple Mail Added BIMI in 2022: Verified Logos Across Apple Clients

Anil Jalela · Published Sep 25, 2022 · 12 min read

Apple Mail added BIMI support with the 2022 operating-system generation, beginning with iOS 16 in September and continuing with iPadOS 16 and macOS Ventura 13 in October, alongside iCloud.com support. Apple’s model makes an important dependency explicit: the sender and the recipient’s mail provider must meet BIMI and Apple Mail requirements. Apple Mail is a client used with many mailbox services, so installing iOS 16 did not make every message from every provider display a verified logo. The operational path includes authenticated organizational identity, DMARC enforcement, a compliant logo, valid evidence, receiving-provider participation and Apple client support. Each state needs separate evidence.

The dated mailbox-provider change

BIMI adoption had already reached Yahoo and Gmail, but Apple Mail represented a different architecture. The app can display accounts hosted by iCloud or by other receiving providers.

Apple’s support therefore depended on server-side provider compliance as well as client version. This prevented a sender from treating an Apple device count as the eligible BIMI audience.

The release arrived across several dates. September 2022 is the correct start for the operating-system generation, while iPadOS 16 and macOS Ventura followed in October.

This event is best understood as a change in one layer of the email system. Transport acceptance, authentication, placement, interface presentation and user action remain different states. The article therefore records what Apple Mail BIMI support changed and what it did not change.

How the system worked before the change

Apple Mail could show sender imagery through account or contact context, but senders lacked this Apple-supported BIMI presentation path.

A campaign report could identify an Apple Mail user agent without identifying whether the underlying mailbox provider participated in BIMI.

Brands deploying for Gmail or Yahoo could not assume that the same evidence and SVG behavior had already been validated for Apple’s environment.

Before Apple Mail BIMI support, teams often had incomplete evidence because sender logs ended at SMTP acceptance while recipient-side behavior occurred inside Apple Mail and iCloud Mail. That boundary matters: an accepted message can still be filtered, presented differently, ignored or acted upon later.

What changed on the provider side

Supported Apple Mail releases could show BIMI-controlled logos when server-side and sender-side requirements were satisfied. Apple linked the display to strong authentication and proof connecting the logo to the domain.

The receiving provider remained responsible for BIMI compliance on its server. Unsupported accounts in the same Apple app could continue to show no BIMI logo.

Apple included VMCs and other BIMI Evidence Documents in its current explanation, requiring teams to track both the domain assertion and its evidence lifecycle.

The implementation of Apple Mail BIMI support created a new operating dependency, not a permanent entitlement. Senders still needed controlled rollout, supported fallbacks, reliable identity and evidence from the actual affected cohort.

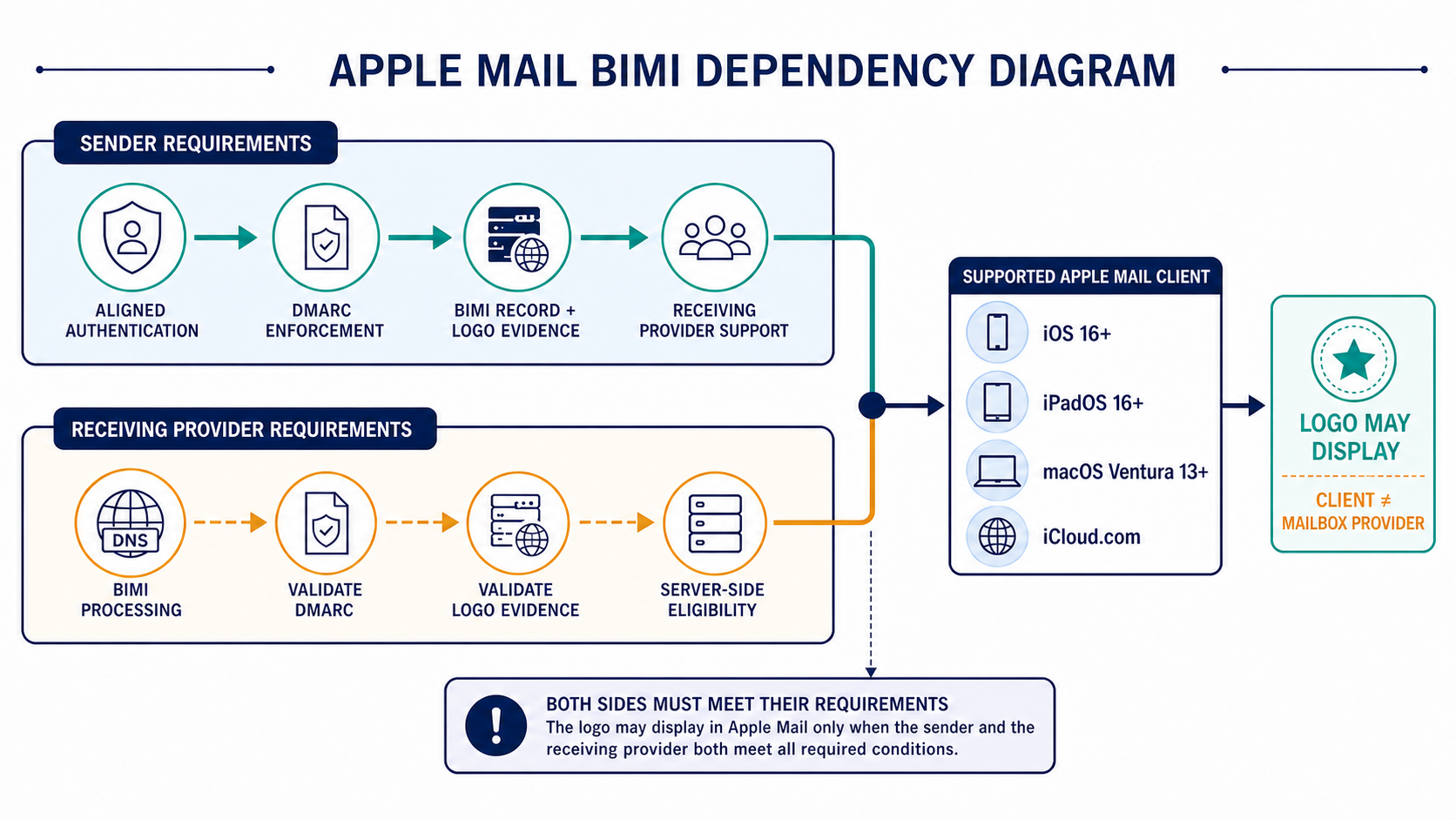

Message path before and after

Before

Authenticated brand message -> receiving mailbox provider
Apple Mail displays normal sender presentation
No Apple-supported BIMI logo path

After

Aligned authentication + enforced DMARC + BIMI DNS assertion
Compliant logo + acceptable evidence document
Participating receiving provider validates requirements
Supported Apple Mail or iCloud surface may display verified brand logo

Who and what the change affected

Effect on delivery, placement and recipient visibility

Apple client identification is not enough to calculate BIMI reach. Segment first by receiving provider eligibility, then by supported client and operating-system version where evidence permits.

A logo display problem should not trigger IP warming or content changes. Verify DNS, DMARC, alignment, evidence, provider support, client release and cache state.

For Apple Mail BIMI support, BIMI is a presentation layer built on authenticated identity. DMARC enforcement, aligned authentication, logo evidence, DNS publication and provider eligibility are prerequisites, but none of them guarantee inbox placement or a particular mailbox category. Normal reputation and abuse systems still apply.

For Apple Mail BIMI support, The visible logo must correspond to the organizational domain evaluated by the receiver. A parent-company certificate does not automatically cover every sending domain, and a technically valid SVG does not prove that the provider will display it. Domain inventory and certificate coverage must precede rollout.

For Apple Mail BIMI support, A missing logo is not proof of delivery failure. Causes include unsupported clients, cache delay, record errors, certificate or evidence problems, DMARC failure, provider reputation decisions and message-specific identity alignment. Diagnose the chain in that order rather than repeatedly changing creative.

Interpret Apple Mail BIMI support at the smallest defensible unit: provider, recipient domain, stream, sending domain, DKIM identity, IP pool, campaign and time window. Portfolio averages can hide both a provider-specific regression and an improvement limited to one eligible surface.

Effect on measurement and diagnosis

Maintain a test matrix across iCloud and selected third-party accounts in supported Apple clients. Record whether the same raw message displays a logo and which provider authenticated it.

MPP also affects open measurement in Apple Mail, so an apparent open change during BIMI rollout is especially unsuitable as proof of logo impact. Use controlled recognition and downstream outcome evidence.

When measuring Apple Mail BIMI support, Measure BIMI as a trust and recognition experiment, not as a deliverability certification. Compare eligible and non-eligible surfaces with careful client segmentation, then examine clicks, conversions, complaints and reported impersonation alongside opens.

When measuring Apple Mail BIMI support, Logo impressions are generally not a sender-controlled event stream. Provider rendering is conditional and cached, so absence of a logo-view counter does not justify embedding new tracking into the logo asset. Use DNS, certificate, authentication and controlled mailbox evidence.

Create an evidence contract before declaring the impact of Apple Mail BIMI support. Name the event, collection point, population, numerator, denominator, latency, privacy boundary and owner. If any of those are unknown, label the conclusion as directional rather than causal.

Advantages for email marketers

Disadvantages and operational risks

What email teams needed to do at the time

1. Confirm the historical scope. Record the announced provider, date, clients and eligibility.
2. Inventory affected traffic. Map recipient domains, streams, identities and sending platforms.
3. Validate authentication. Check SPF, DKIM, DMARC alignment and TLS independently.
4. Build a safe fallback. Keep the message useful when the new surface is unavailable.
5. Test controlled mailboxes. Capture headers, screenshots, timestamps and outcomes.
6. Define measurement. Name populations, denominators, latency and privacy limits.
7. Stage the rollout. Change one bounded cohort and set stop conditions.
8. Brief support teams. Give them expected behavior and an escalation evidence pack.

What email teams should do now

1. Read the current provider documentation. Do not assume the 2020 to 2022 launch rules are unchanged.
2. Reconfirm eligibility and support. Test the exact clients, accounts and sending identities in use.
3. Keep authentication aligned. Monitor SPF, DKIM, DMARC and TLS as separate controls.
4. Preserve permission evidence. A presentation feature does not repair weak acquisition.
5. Segment provider traffic. Diagnose Apple Mail and iCloud Mail separately before changing global policy.
6. Protect suppressions and transactional streams. Do not let experimentation delay required state changes.
7. Retain raw evidence. Store message IDs, timestamps, headers, configuration and test results.
8. Use outcome metrics. Include clicks, conversions, complaints, opt-outs and support impact.
9. Review security and privacy. Limit data, endpoints, credentials and exceptions.
10. Maintain rollback. Name the owner and the threshold that returns traffic to the known-safe path.

Worked deliverability scenario

A brand estimates Apple BIMI reach from Apple Mail opens and expects every corresponding address to display its logo. Tests show the logo in iCloud accounts but not in a third-party mailbox configured in the same app.

The team separates client from mailbox provider, verifies DMARC and evidence, and builds a provider-client support matrix. It stops using privacy-affected opens as the eligible denominator.

Rollout reporting now states verified test coverage and business outcomes without claiming universal Apple-device display or inbox improvement.

The decisive improvement for Apple Mail BIMI support is operational: the team separates provider evidence from assumptions, changes one controlled variable, records a rollback threshold and waits for a complete observation window. That prevents a visible interface change from becoming an excuse for unrelated domain, volume or creative changes.

Evidence and diagnostics

• Message identity: RFC 5322 From, envelope sender, DKIM domain and selector.
• Transport: connecting IP, TLS result, SMTP response and provider timestamp.
• Authentication: SPF, DKIM, DMARC and ARC results from the received header.
• Eligibility: provider registration, tenant setting, certificate or supported-client state.
• Rendering: raw MIME, fallback, screenshots and client version.
• Recipient scope: provider domain, account type, geography and app surface.
• Behavior: clicks, replies, conversions, complaints and unsubscribes.
• Change record: deployment time, owner, cohort, configuration diff and rollback threshold.
• Comparison: unaffected control cohort with the same purpose and acquisition source.

Failure modes and incorrect conclusions

• Equating SMTP acceptance with inbox placement. These are separate receiver decisions.
• Calling a provider UI change a reputation penalty. Verify transport and folder evidence first.
• Removing the fallback. Support and eligibility are never universal.
• Changing IP, domain, creative and cadence together. The test becomes uninterpretable.
• Trusting opens as the only outcome. Collection and privacy controls distort them.
• Ignoring the recipient denominator. Portfolio averages conceal provider-specific effects.
• Keeping permanent exceptions. Unowned allow lists and credentials accumulate risk.
• Using launch documentation as current policy. Recheck the maintained provider page.

Current status and superseding changes

Apple currently documents BIMI support in macOS Ventura 13, iOS 16, iPadOS 16 or later and iCloud.com. Both sender and email service provider requirements remain part of the display decision.

Certificate and evidence options can evolve. Use Apple’s maintained developer documentation and the applicable BIMI specification before renewal or migration.

Keep the logo accessible and monitored, but do not use its asset request as a recipient tracking mechanism.

Current behavior for Apple Mail BIMI support must be checked again before a production change because provider documentation, client support and eligibility can evolve. The dated event remains useful as a historical control point, while the linked current documentation governs present operation.

A production runbook for Apple Mail BIMI support should contain more than a setup instruction. Record the business purpose, accountable owner, approved sending identities, affected recipient population, prerequisites, evidence sources, known unsupported paths, rollout cohort, stop threshold and rollback method. Attach a dated configuration export or DNS answer instead of relying on a screenshot with no timestamp. Review the runbook after an ESP, gateway, domain, certificate, mailbox client or provider policy changes.

Incident handling for Apple Mail BIMI support should begin with a narrow comparison. Select one affected message and one known-good message with the same stream and nearby time. Compare SMTP responses, authentication results, raw MIME, provider or tenant eligibility, client presentation and downstream action. Widen the query only after identifying the first state where their paths differ. This is faster and safer than changing sending IPs, From domains and creative together.

Ownership for Apple Mail BIMI support must cross organizational boundaries. Deliverability owns provider evidence and traffic controls; engineering owns MIME, APIs and event integrity; security owns trust and endpoint risk; privacy owns collection and retention; marketing owns permission, promise and cadence; support owns recipient-facing explanations. A launch is incomplete when any team lacks the evidence required to distinguish expected behavior from failure.

Evidence for Apple Mail BIMI support also needs a retention rule. Keep enough raw headers, configuration history and aggregate outcome data to investigate a delayed complaint or regression, but do not retain recipient-level data merely because it was convenient during launch. Limit access by role, document the permitted purpose, remove expired exports and preserve only the minimum artifacts needed to reproduce the operational conclusion.

Finally, retain a negative control for Apple Mail BIMI support. Send a technically valid message that is intentionally outside the feature’s eligible condition, while keeping purpose and audience comparable. The difference shows whether Apple Mail and iCloud Mail is applying the feature where expected. It also prevents teams from interpreting an unrelated seasonal, audience or reputation shift as proof that the feature caused the result.

Operator checklist

• Record the exact historical event date and source.
• Document what changed and what explicitly did not change.
• Map affected providers, domains, clients and account types.
• Validate SPF, DKIM, DMARC alignment and TLS.
• Keep a complete, accessible fallback message.
• Test with raw headers and controlled recipient accounts.
• Separate acceptance, placement, presentation and action metrics.
• Name every numerator, denominator and observation window.
• Monitor complaints, opt-outs and downstream outcomes.
• Set rollout ownership and rollback thresholds.
• Revalidate the current provider requirement before deployment.

Primary and contemporaneous references

• Apple Developer: Prepare for BIMI support in Apple Mail: Primary evidence used to verify the dated event or current operating requirement.
• Apple Support: About BIMI support in Apple Mail: Primary evidence used to verify the dated event or current operating requirement.
• Apple Newsroom: iOS 16 availability: Primary evidence used to verify the dated event or current operating requirement.
• Apple Newsroom: macOS Ventura availability: Primary evidence used to verify the dated event or current operating requirement.
